This is a sample measuring form whch demonstrates the measurements required when you purchase a Furling Headsail.
A "live" measuring form will be sent to you at the time of purchase. The live form is linked to your order and is the best way to provide measurements. Please do not use this form to submit measurements.
Owners sometimes wonder why we need measurements. Aren't they the same for all boats of the same model? Actually, no.
Manufacturers often change gear mid-production run due to shortages, excess inventory on hand or simply a better deal from another supplier. Molds wear out and are changed, with slight differences in dimensions. Or, the dealer or a prior owner made modifications to the boat.
And with a purchase as important as this, we simply can't rely on patterns from other boats. When you complete and submit this form you ensure that your Furling Headsail will fit your boat perfectly.
Need help? Call 877-932-7245, M-F 10am to 4pm Eastern time or contact us through customer service.
Please note: You must complete this form. We are unable to build a new sail from the dimensions of
your old sail or any other set of measurements.

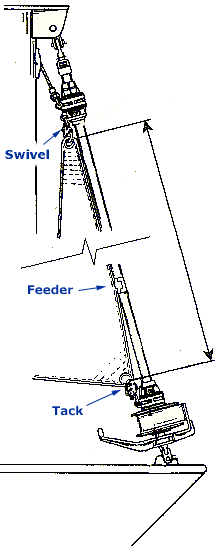

Attach a measuring tape to the headsail swivel (same place you would attach head of the jib) and raise it as much as you can without jamming it. From that point take measurements to the...
A
From the swivel to the tack
inches
B
From the swivel to the forward end of the genoa track (on the deck). If you do not have a genoa track, but use a fixed block to run the sheet through, measure to the location of the block.
inches
C
From the swivel to the aft end of the genoa track (on the deck). If you don't have a genoa track, just indicate N/A in the space provided.
inches
Attach a measuring tape to the tack. From that point take measurements to the...
D
From the tack to the forward end of the genoa track (on the deck). If you do not have a genoa track, but use a fixed block to run the sheet through, measure to the location of the block.
inches
E
From the tack to the aft end of the genoa track (on the deck). If you don't have a genoa track, just indicate N/A in the space provided.
inches
F
From the tack to the feeder (that's the opening of the slot in the headstay where the sail feeds into it)
inches
About your furling system
G
What kind of roller furling system is on your boat? Please enter the brand and model.
H
Does your sail roll up clockwise or counterclockwise? (Or, is the UV cover on your existing sail on the port or starboard?)
Clockwise Counter-clockwise
I
Measure from the deck to the shackle pin on top of your furling drum
inches
Please add any additional instructions, if necessary
